CATALINA - 2001 146' 10" VITTERS
Palma Balearic Islands Spain
($11,446,273 USD est.) €9,995,000 EUR

Yacht for sale is a 2001 VITTERS 146' 10" "CATALINA" Cruising Ketch in Palma, Balearic Islands, Spain.

Get more information on this listing
LENGTH 44.75m
BUILDER VITTERS
ASKING PRICE ($11,446,273 USD est.) €9,995,000 EUR
BUILT (REFIT) 2001 (2024)
BEAM 9.12m
DRAFT N/A
MAX SPEED 14 Knots
CRUISING SPEED 10 Knots
CABINS 5
GROSS TONNAGE 275.00
DISPLACEMENT N/A
LOCATION Palma, Balearic Islands, Spain
Powered by YATCO, the Official MLS of Yachting
Get more information on this listing

FULL SPECIFICATIONS

DETAILED DESCRIPTION

  1. MAIN CHARACTERISTICS

    TYPE
    • Cruising ketch
    BUILDER
    • Vitters
    MMSI NUMBER
    • 378399000
    CALL SIGN
    • ZJL9756
    OFFICIAL NO.
    • 733691
    NAVAL ARCHITECT
    • Dubois Naval Architects
    EXTERIOR DESIGN
    • Dubois Naval Architects
    INTERIOR DESIGN
    • John Munford Design
    YEAR
    • 2001
    REFIT
    • 2024
    CLASSIFICATION
    • ABS
    CONSTRUCTION
    • Aluminium Hull & Superstructure
    • Teak Decks
    CREW
    • 7 crew + 2 optional
    FLAG
    • Virgin Islands (British)
    ENGINES
    • 1 x 664 kW (890 Hp) Caterpillar 3412E DI-TA
    GT
    • 275
    NT
    • 82
    DISPLACEMENT
    • Approx. 320 tons

  2. DIMENSIONS

    LOA
    • 44.75m / 146'10"
    BEAM
    • 9.12m / 29'11"
    DRAFT
    • 4.00m / 13'1" max

  3. SPEED & RANGE UNDER POWER

    MAXIMUM SPEED
    • 14.00 knots
    CRUISING SPEED
    • 10.00 knots
    RANGE
    • 3,500nm at 10.00 knots
    FUEL CONSUMPTION
    • 70 litres per hour

  4. CAPACITIES

    ACCOMMODATION
    • 8+1 guests in 5 cabin(s)
    CREW
    • 7+2 crew in 4 cabin(s)
    FUEL
    • 27,900 litres / 7,370 US gallons
    FRESH WATER
    • 8,000 litres / 2,113 US gallons
    LUBE OIL
    • 400 litres / 106 US gallons
    DIRTY OIL
    • 400 litres / 106 US gallons
    GREY WATER
    • 1,175 litres / 310 US gallons
    BLACK WATER
    • 4,000 litres / 1,057 US gallons
    SLUDGE TANK
    • 460 litres / 122 US gallons

  5. ACCOMMODATION

    Accommodation for up to 8+1 guests in 5 cabins and up to 9 crew
    GUEST CABINS
    • 1 x Full beam master cabin with sitting area, desk, and his & hers en suites
    • 2 x Twin cabins each with two single berths and en suites
    • 1 x Single cabin port side converted from study
    • 1 x Single cabin starboard side with pullman and en suite
    CREW CABINS
    • 1 x Captain cabin with double berth and en suite
    • 3 x Crew cabins, each with over / under berth and en suite

  6. WALKTHROUGH

    • INTERIOR

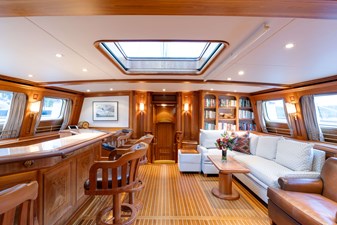

      • CATALINA is thoughtfully designed for comfort and style. The main salon is accessed via the bridge port side companionway, with a sliding privacy door leading to the captain’s office, galley, and crew area. A large skylight and six windows with blinds fill the space with light. The salon features a moveable sofa and coffee table, plus a port-side bar and retractable smart TV. Teak and holly passageways lead to lower guest accommodations. The starboard side cabin has a single berth with Pullman and en suite, while the port side offers a single berth. Further aft are two mirroring cabins with lower twin berths, each including an en suite with stall shower. The master stateroom spans the full beam, featuring two en suites and an emergency escape hatch. The main deck salon has a dining area to port, a seating area to starboard, and nine electric drop windows that can open for an outside feel. The salon is air-conditioned and heated, with an adjustable table for up to nine guests.

    • EXTERIOR

      • The exterior of CATALINA features a flush main deck overlaid in high-quality teak, with planks measuring 55mm wide, 20mm thick, and up to 5 metres long. The raised bridge is accessed from the deck salon or main salon forward, with teak flooring, counters, and seating at the console on the port and starboard sides. Hydraulic pantograph doors with drop-down windows and a double electric door lead aft to the main deck salon. The perimeter is framed by a teak cap rail and stainless steel stanchions. The aft deck includes a bimini top, sliding bulwarks, manual bulwark doors for easy access, and seating with adjustable tables on both sides, along with a forward bar. Port and starboard helm stations provide excellent control and visibility.

  7. MECHANICAL EQUIPMENT

    ENGINES
    • 1 x 664 kW (890 Hp) Caterpillar 3412E DI-TA Diesel
    ENGINE HOURS
    • 27,126 hours as of 23rd Apr 2025
    • 1,371 hours since 2024 rebuild
    GENERATORS
    • 1 x 65 kW (87 Hp) Northern Lights M65T13
    • 1 x 55 kW (74 Hp) Northern Lights M1064T1
    • 1 x 40 kW (54 Hp) Northern Lights M4039D
    GENERATOR HOURS
    • Output: 120 / 208, 3 phase, 60 Hz
    • Gen.1: 9,131 hours as of 23rd Apr 2025
    • Gen.2: 27,770 hours as of 23rd Apr 2025
    • Gen.3: 30,423 hours as of 23rd Apr 2025
    GEARBOX
    • ZF
    PROPULSION
    • Caterpillar
    PROPELLER
    • Korsor CP 18 HRS 40kW controllable propeller
    • 4-blade bronze 1,300mm dia.
    • 120mm stainless steel nonmagnetic propeller shaft
    RUDDER ANGLE
    • Carbon full keg hung rudder
    STEERING SYSTEM
    • Hydraulic electric hand steering, full autopilot control with jog lever
    • Main pumps: Manual wheel driven from each helm station
    • Auto pilot: Simrad follow up system (2018)
    BOWTHRUSTER
    • 100Hp Hydrosta hydraulic hinged retractable
    STERNTHRUSTER
    • 100Hp Hydrosta hydraulic hinged retractable
    ALTERNATING CURRENT SYSTEM
    • 110 / 208 V 60 Hz with inverters to supply limited 220V VAC system
    • 3 x Northern Lights wound three phase to produce 208 V at 60 cycles
    DIRECT CURRENT SYSTEM
    • 24 V system for the starting of main and auxiliary engines, radio & navigation equipment, majority of lighting and pumps.
    • The DC system utilizes a main switchboard is in engine control room and features five separate battery banks, each with its own battery charging system
    INVERTERS
    • 10 x Inverters (majority Mastervolt)
    SHORE POWER
    • Magnus marine 60KW SP150 shore power convertor (2024)
    • Input: 180-520 VAC at 45-65 Hz
    • Output: 208/120 VAC at 60 Hz
    BATTERIES
    • 2 x banks of 12 x 2V 1000Ah batteries
    HYDRAULICS
    • 1 x Main engine PTO with clutch
    • 1 x Generator PTO with clutch
    • 1 x A/C pump on demand
    FUEL CENTRIFUGE
    • GEA Westfalia
    FUEL PURIFIER
    • GEA Westfalia
    AIR CONDITIONING
    • Dometic heating and cooling system:
    • 4 x Sealed compressors 240,000 BTU
    • 2 x 10kW heaters in guest area fan coils
    WATERMAKER
    • 2 x Matrix Desalination, Inc. reverse osmosis 240 litres per hour
    TOILET SYSTEM
    • Royal flush heads
    SEWAGE SYSTEM
    • Hamann AG
    FUEL SEPARATOR
    • GEA Westfalia

  8. SAILS & RIGGING

    MAIN SAIL
    • North Sails 3Di fully battened boom furling mainsail (2022)
    MIZZEN
    • North Sails 3Di furling staysail (2022)
    SPINNAKER MPS
    • North Sails A2 Asymmetrical Superlite / Superkote SK 250 CTDR
    GENOA
    • North Sails 3Di furling genoa (2022)
    MAIN BOOM
    • Marten Spars of New Zealand roller furling type hydraulic motor outboard end with hydraulic out haul carbon fibre mandrill and boom vang
    MIZZEN BOOM
    • Marten Spars of New Zealand roller furling type hydraulic motor outboard end with hydraulic out haul carbon fibre mandrill with topping lift
    MAIN MAST
    • Marten Spars of New Zealand carbon fibre, keel-stepped with 5 spreaders, masthead rig and hydraulic jacks
    MIZZEN MAST
    • Marten Spars of New Zealand carbon fibre, keel-stepped with 3 spreaders and hydraulic jacks
    STANDING RIGGING
    • Stainless steel rod rigging (2024)
    RUNNING RIGGING
    • Dyneema rigging by Marine Results (2025)
    FURLING GEAR
    • 2 x Reckman hydraulic furlers for genoa and staysail
    WINCHES
    • Rondal captive hydraulic winches:
    • 2 x Genoa with hydraulic driver blocks
    • 2 x Staysail sheet with hydraulic driver blocks
    • 1 x Main halyard
    • 1 x Main sheet with hydraulic driver block
    • 1 x Preventer
    • 1 x Mizzen halyard
    • 1 x Mizzen sheet with hydraulic driver block
    • 1 x Mizzen preventer
    • 2 x Runner foreguys
    • Anderson open reel hydraulic winches:
    • 1 x Foredeck 110
    • 2 x Main mast 110
    • 2 x Aft deck 125 primaries
    • Main mast Harken 44, manual
    • Main mast Anderson Pole lift, manual
    CONTROLS
    • Sail control panel in wheelhouse
    • Hardwired mizzen mast controller on lead with wireless remote
    • 2 x Wireless controllers fro main mast furlers and all winch functions
    • Manual hydraulic Navtec panel
    • Deck foot switches for open reel drum winches
    HYDRAULIC RAMS FOR SAILING SYSTEMS
    • Split permanent backstays with hydraulic rams
    • 2 x Main backstay
    • 2 x Mizzen backstay
    • Mizzen topping lift
    • Main boom vang
    • 2 x Main mast halyards
    • 2 x Main running backstays
    • 2 x Car pullers
    • 1 x Main traveller

  9. COMMUNICATION EQUIPMENT

    SATCOM
    • 1 x Iridium LT-3100S GMDSS system
    • 1 x Iridium handheld
    VHF
    • Icom handheld VHF and VHF speaker
    SSB
    • Sailor 6301 MF / HF
    LOUDHAILER
    • SeaHail
    MONITORING SYSTEMS
    • Marble Alarm control monitoring system
    • CCTV monitor
    TELEPHONE EXCHANGE
    • Panasonic PABX
    INTERNET
    • Starlink

  10. DECK EQUIPMENT

    ANCHOR WINDLASSES
    • Staarlart Technics hydraulic, no capstans
    ANCHORS
    • Galvanized plow 300kg
    ANCHOR CHAINS
    • 2 x Lengths 3/4 galvanised stud link with swivels, 5 x 27.5m shots per side
    BIMINI
    • Bimini on stainless steel framework
    BOAT CRANE & DAVITS
    • Staarlart Technics retractable davit
    PASSERELLE
    • Staarlart Technics retractable passerelle
    SIDE BOARDING LADDER
    • Staarlart Technics retractable sideboarding ladder, port and starboard
    SWIMMING PLATFORM
    • Staarlart Technics folding swim platform
    AWNINGS
    • Fore and aft awning by Penrose Sails

  11. ENTERTAINMENT EQUIPMENT

    MAIN SALON
    • SONOS sound system
    • TV on electric lift
    • Blu-ray / DVD player
    • Beer & wine fridges
    MAIN DECK
    • SONOS sound system
    • Marvel fridge
    • Ice maker
    COCKPIT
    • SONOS sound system
    • 1 x TBC custom top-loading fridge with drink dispenser
    • Heater locker for drying water gear
    MASTER CABIN
    • SONOS sound system
    • TV with DVD player
    GUEST CABINS
    • SONOS sound system
    • Koru TV / Smart TV
    GALLEY
    • SONOS sound system
    CAPTAIN'S CABIN
    • TV with DVD player
    CREW AREAS
    • SONOS sound system
    • 3 x TVs, one per cabin
    • 1 x Smart TV in crew mess
    • DVD player
    • AV receiver
    CONNECTIVITY
    • Starlink installed on mizzen mast

  12. TENDERS & WATERSPORTS EQUIPMENT

    TENDERS
    • 1 x 5.49m / 18' Brent Gray 9-passenger "Beach Bus" catamaran with Yamaha 115 Hp outboard
    • 1 x 3.66m / 12' Zodiac semi-rigid foldable inflatable 20 Hp Yamaha
    WATERSPORTS EQUIPMENT
    • 2 x Paddle boards
    • 2 x Inflatable kayaks
    • 1 x Wakeboard
    • 2 x Sets of waterskis
    • 2 x Towable tubes
    • Snorkelling gear
    DIVING
    • 4 x Sets of diving gear
    • 6 x Aluminum tanks
    • 1 x Bauer Junior II dive compressor

  13. REFIT & MAINTENANCE NOTES

    • 2023-2024

      • Total intermediate ABS survey
      • Full service of rigs including new standing rigging
      • Rebuilt main engine including replacement of main engine muffler (Halyard)
      • Alarms and monitoring updated with new Marble Automation PLC
      • Capping rail and pulpit replaced
      • Installed new Korsor controllable pitch prop and serviced CPP system
      • Replaced fire main and replaced 2 x fire dampers
      • Installed new shore power unit
      • New AC ducting installed, replaced hoses, and cleaned make-up air units
      • Serviced passerelle
      • Replaced seawater crossover piping
      • Replaced exhaust components, including hoses, spray head, spigots, port exhaust elbow, and repaired hull exhaust penetrations
      • Superstructure painted, including non-skid
      • Fully painted topsides
      • Ceramic coating completed
      • Black water tank system maintenance performed
      • Steering system modifications completed
      • Replaced galley worktops with Corian and additional storage added
      • New cutlass bearings
      • Serviced gearbox
      • Installation of soot sinker
      • Stern tube replaced
      • Fitted new power bank battery and investigated system alarms
      • Upgraded faulty sensors
      • New navigation electronics
      • Fixed drain in water box
      • Added emergency fuel shut-off valve per class
      • Replaced forepeak hydraulics and MCT gland
      • Skimmed sea strainer lids
      • Upgraded hot water boilers and dryers
      • Guest shower replaced
      • Crew shower doors replace and caulking completed
      • Serviced rudder and checked rudder stock
      • Replaced valves
      • Repaired shell plating on bow and reworked joggles
      • New running backstay
      • Repaired mast
      • Replaced wheelhouse
      • Protected deck
      • Removed and painted transom door
      • Antifouling completed
      • Galley deckhead refinished
      • Guest plate area updated
      • Blinds replaced throughout guest areas
      • Installed new carpeting

    • 2018:

      • Installed new generator
      • Replaced hydraulic system
      • New teak decking
      • Removal and re-installation of shaft and prop
      • Improved and reinstated stanchions

  14. COMMENTS

    Launched in 2001, CATALINA is a superb 4-stateroom world cruiser that exudes pedigree and exceptional craftsmanship. With Vitters construction, a timeless John Munford interior design, and renowned naval architecture by Dubois (Malcolm McKeon), she offers striking aesthetics alongside outstanding performance and seaworthiness. Her warm wooden features create an inviting and elegant atmosphere throughout, complemented by expansive skylights and electric drop windows that open the main deck salon for an outside feel when desired.



    CATALINA benefitted from a comprehensive 2023-2024 refit at Pendennis Shipyard, encompassing structural, mechanical, and interior upgrades. Recently replaced North Sails 3Di mainsail, staysail, and genoa in 2022 ensure optimal performance for cruising or racing. A stunning sailing yacht, meticulously maintained by two extremely knowledgeable yachtsmen, CATALINA presents a rare opportunity and a very attractive offering.



    Please note that all artwork, books, and artifacts are excluded. A detailed list will be provided.



    • KEY FEATURES

      • ABS classification
      • Extensive refit in 2023-2024 at Pendennis Shipyard
      • Recently replaced (2022) North Sails 3Di mainsail, staysail, genoa
      • Vitters contruction for superior build quality and performance

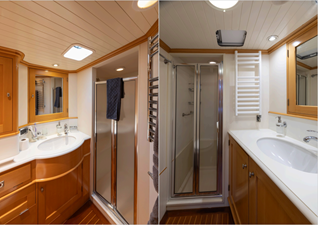

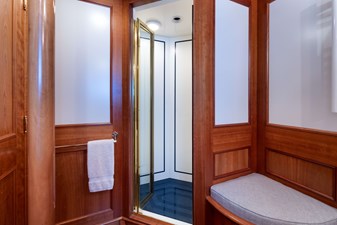

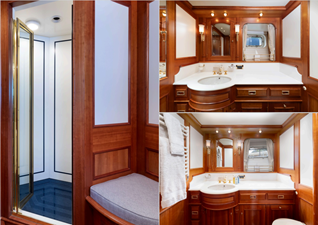

      • Luxurious full beam master cabin with his & hers en suites





Interested in this yacht?

Share With Your Friends

VITTERS 2001
